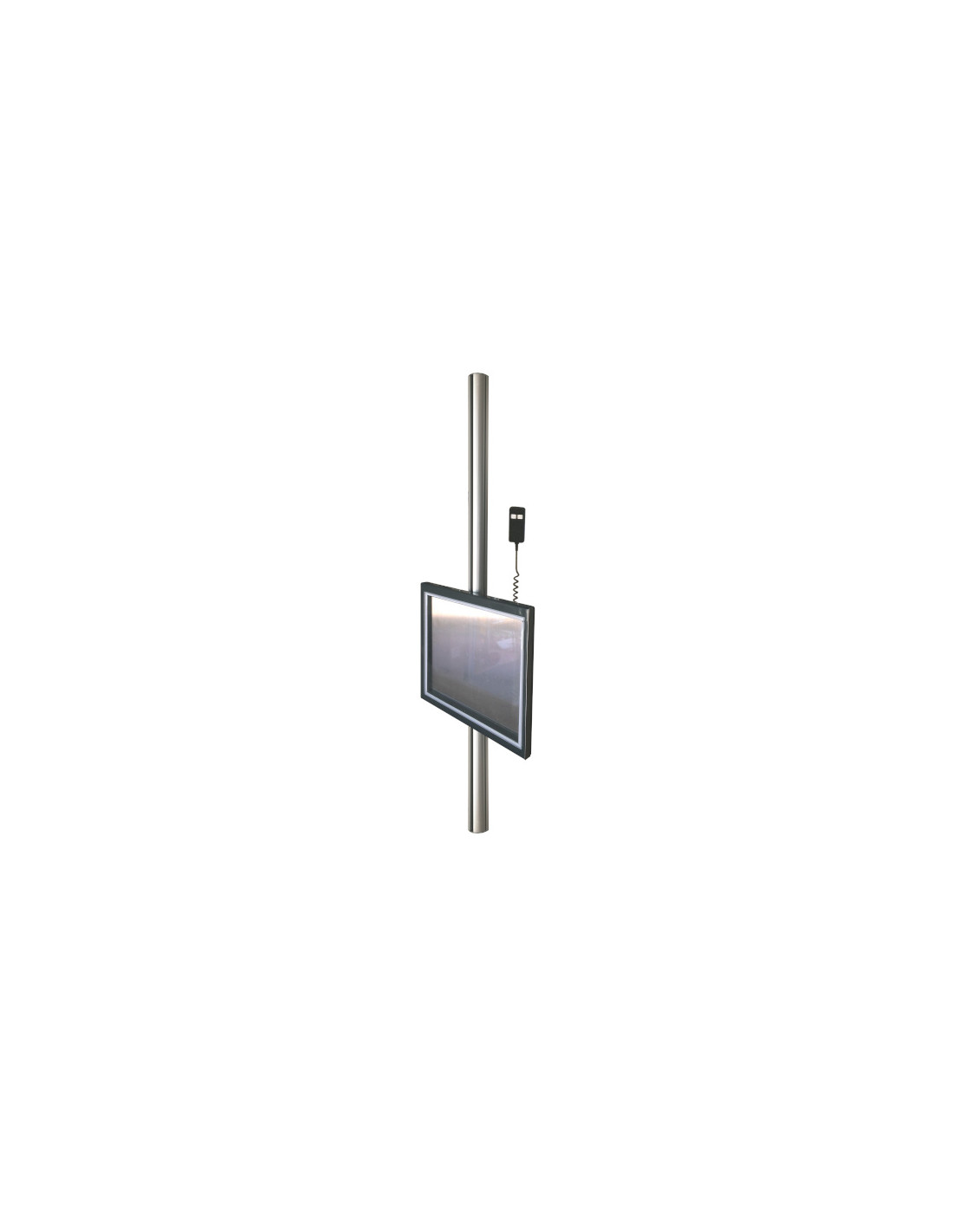

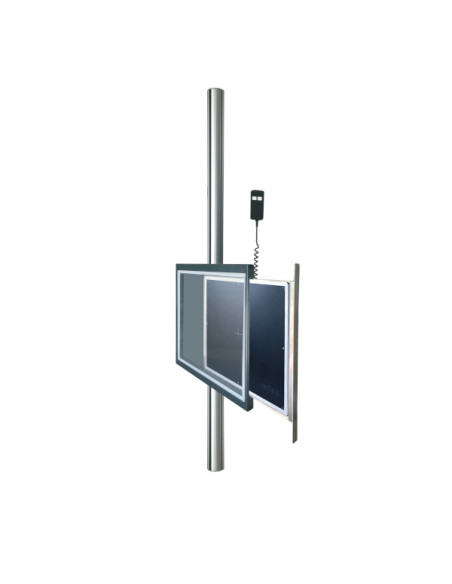

Motorized,removable wall-mounted flat-panel detector support on colum support on 200cm column, Max load 150k-drawer 531x475x36mm

The motorized, wall-mounted and removable flat panel detector holder is a new-generation solution designed to provide optimal user comfort,
high precision, and outstanding versatility in medical imaging environments.
Motorized, wall-mounted, and fully removable, it perfectly meets the needs of clinics, medical practices, and hospitals looking to optimize their radiological examinations.

A simple and intuitive motorized system:
Equipped with a motorized column controlled by a two-button remote, it allows smooth and precise positioning of the detector.
The operator benefits from increased speed and ergonomics, while ensuring maximum comfort for the patient.

Removable drawer for maximum versatility:

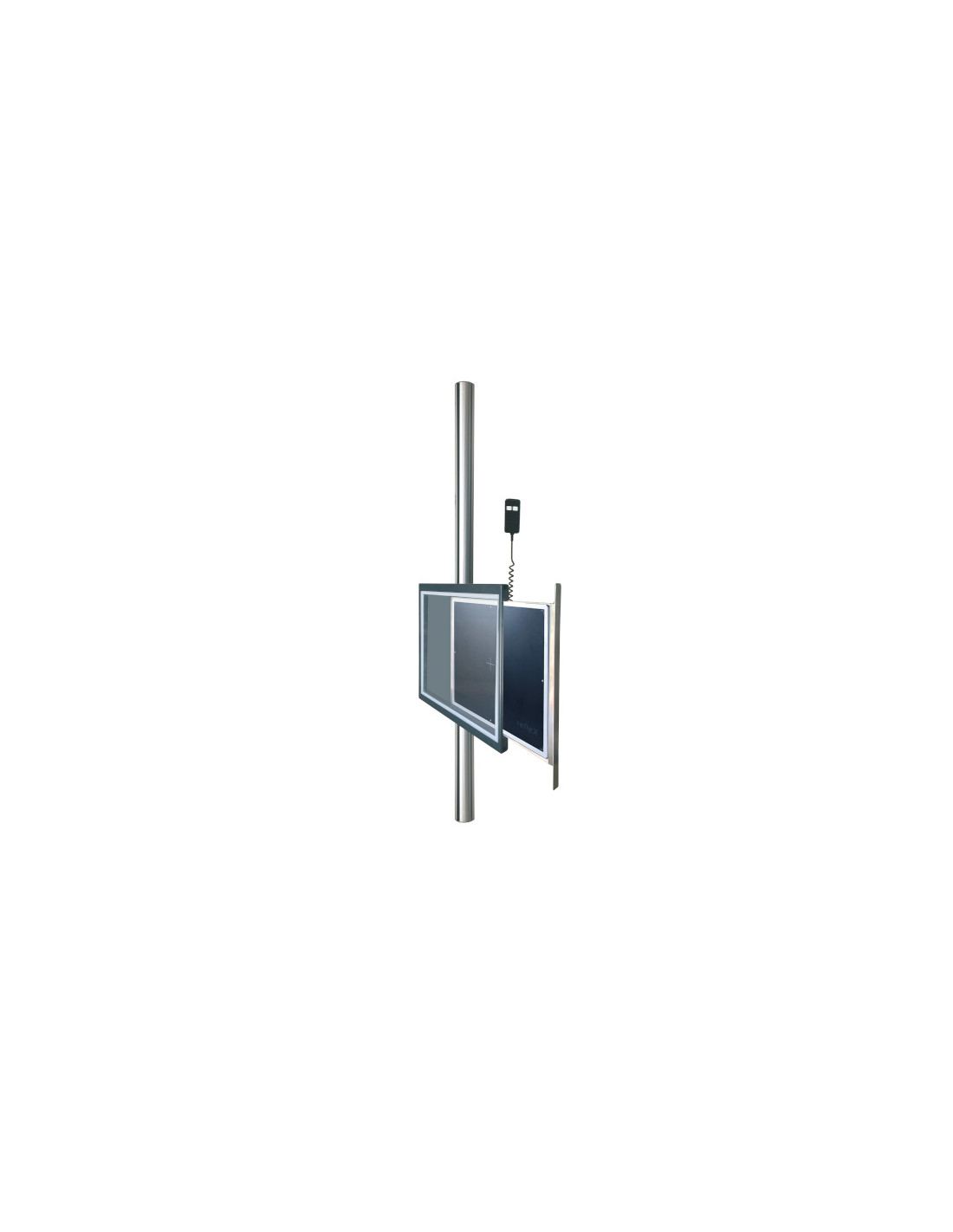

It features a removable drawer designed to hold a flat panel detector or radiographic cassette.
The drawer can be detached from its wall support and placed on the floor, making it ideal for examinations such as weight-bearing foot studies or any imaging requiring a specific patient position.

The drawer can be opened even with the patient on top, ensuring safe and convenient use.

Technical Specifications:
- Drawer dimensions: 531 475 36 mm
- Column height: 200 cm
- Materials: Thermo-lacquered aluminum, 10 mm polycarbonate platform
- Power supply: 220 V / 24 V
- Maximum patient weight: 150 kg
