Needles L50mm D23G (0.60mm) for image-guided application (CT, X-ray) 20 pcs per boxes

Interventional Cannulas for image-guided minimal invasive procedures - Length: 50 mm - Diameter: 23G(0,60 mm)

Interventional cannulas have been developed for image-guided minimally invasive diagnostic and therapeutic applications (CT, X-ray fluoroscopy).

These products are characterised by strong guiding properties, low penetration force and precise positioning.

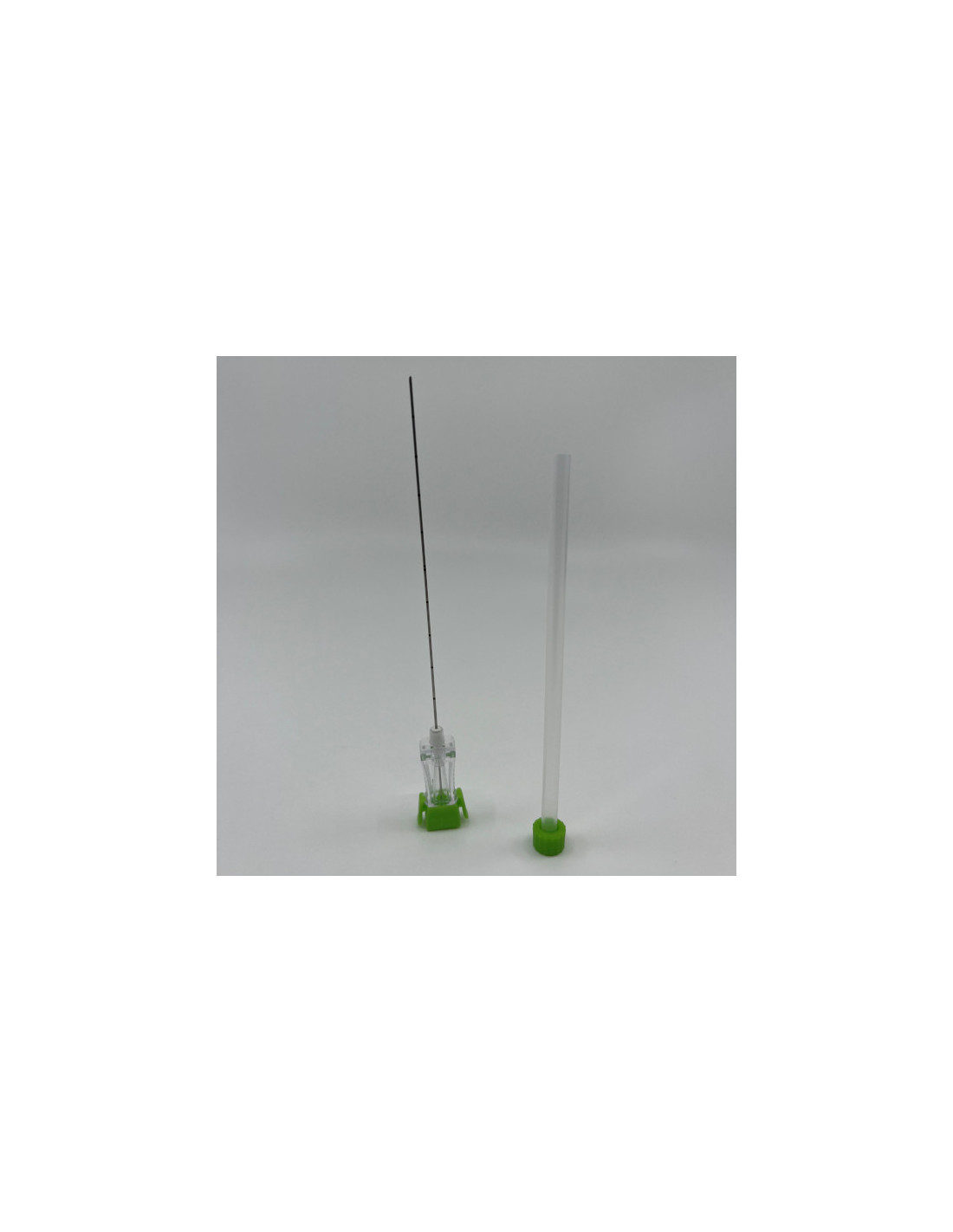

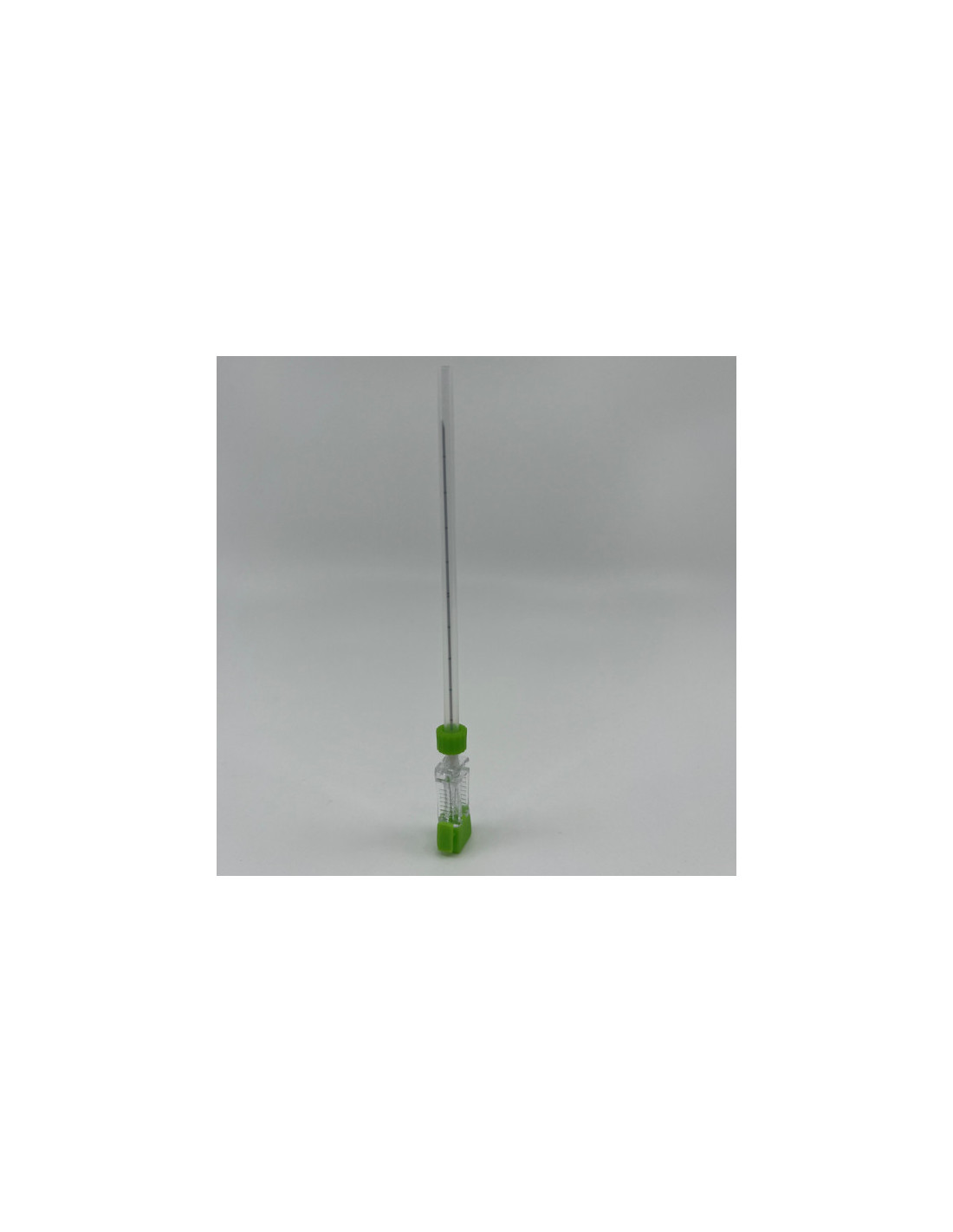

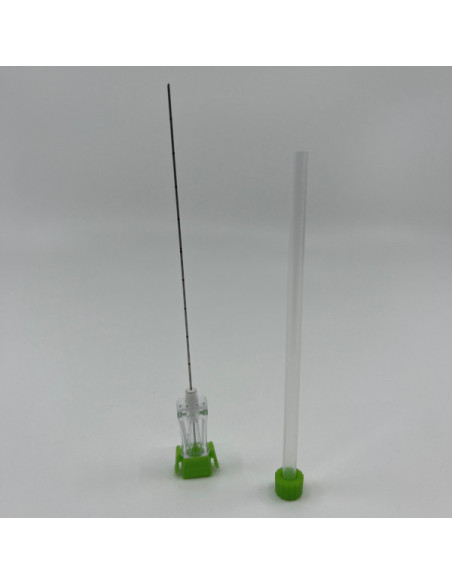

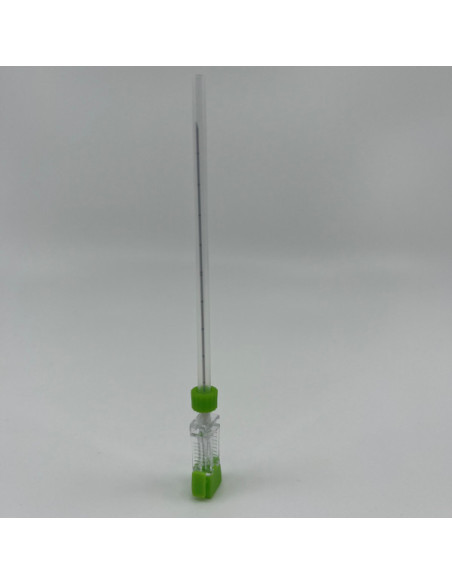

An innovative locking cap prevents unwanted needle movement, and the movable cap can be used to preset the intended penetration depth.

Possible applications for these products are spinal pain therapy (periradicular therapy, facet joint infiltration), sympathicolysis (lumbar, thoracic) and fine needle aspiration for diagnostic purposes.

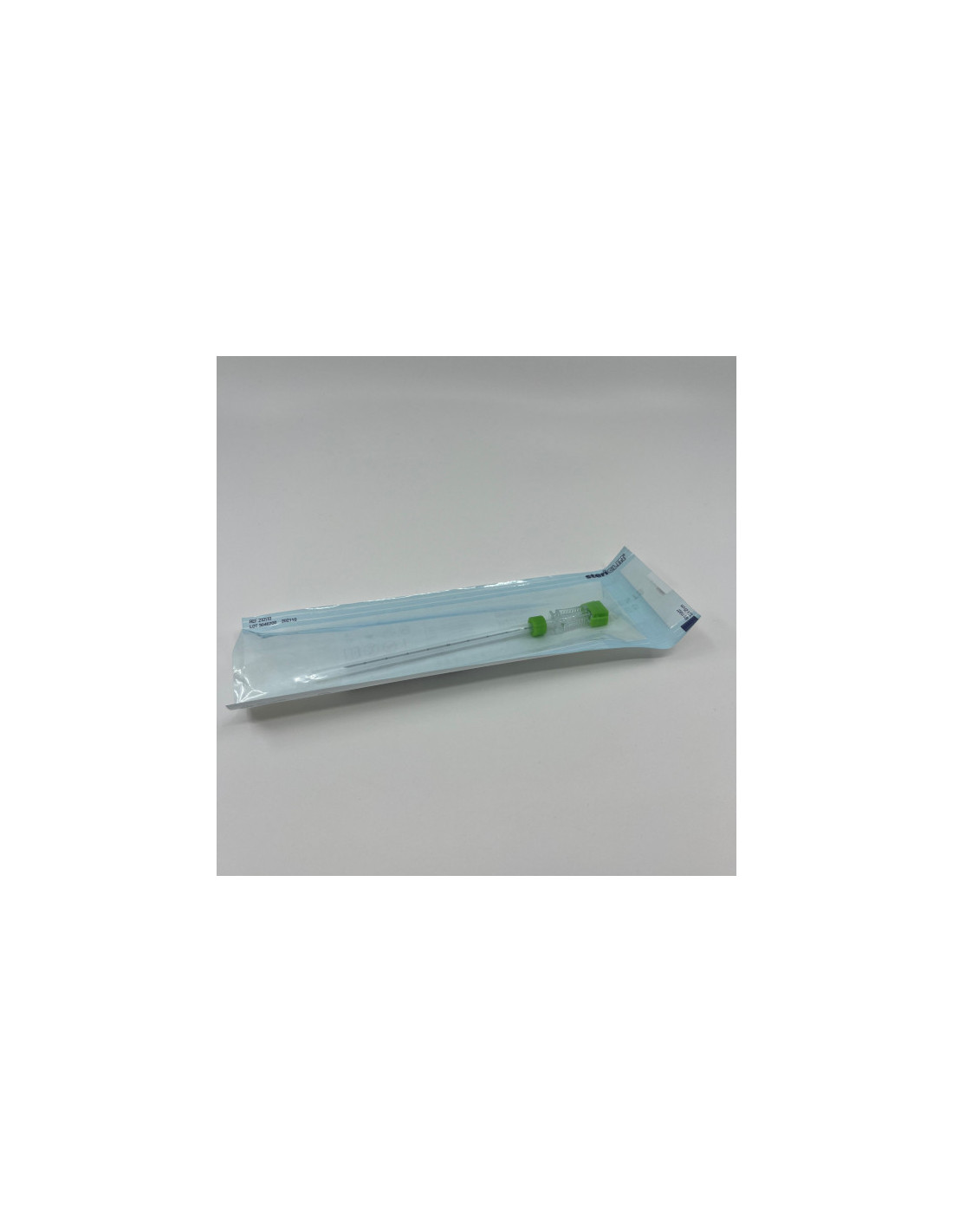

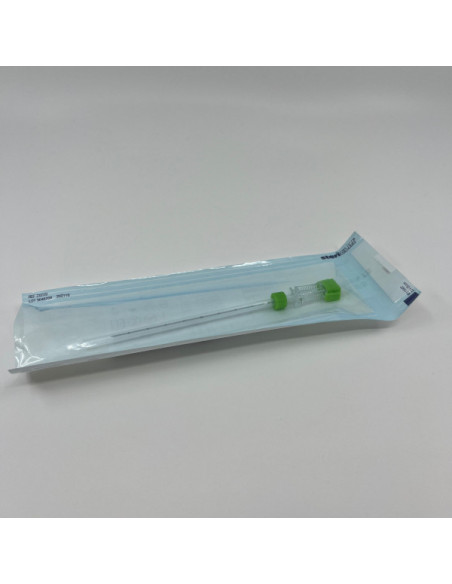

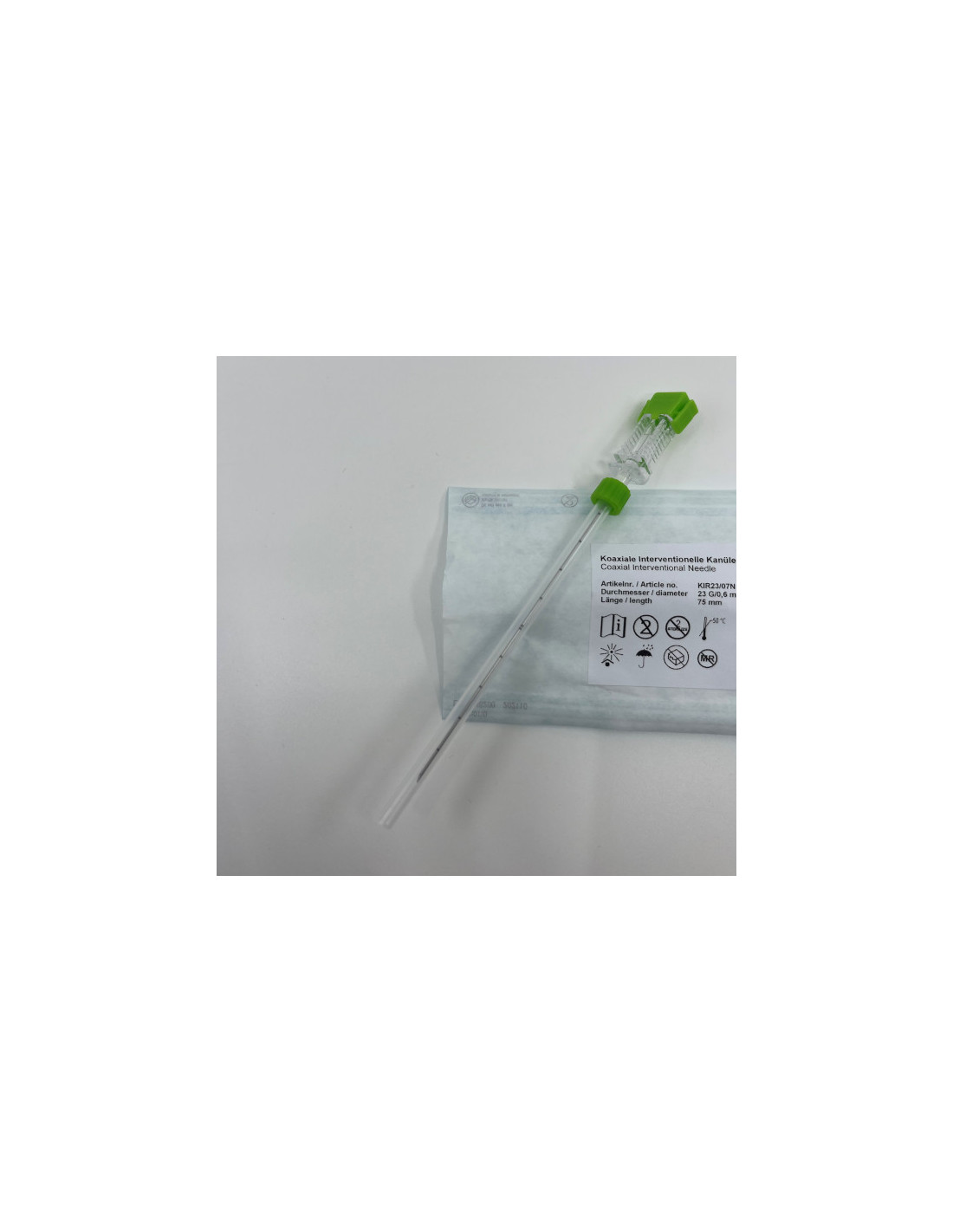

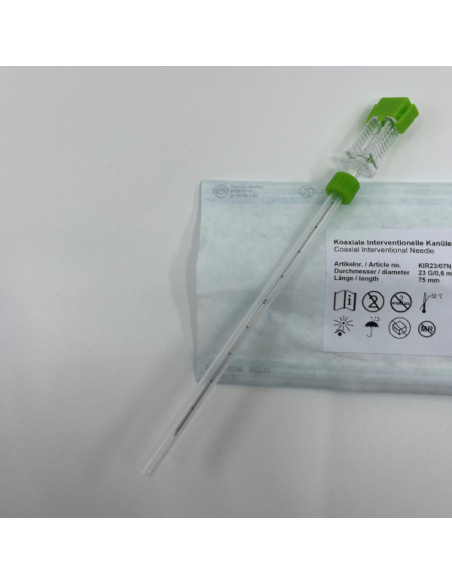

These single-use needles are marked every 10 mm, with more pronounced markings every 50 mm, and are supplied in boxes of 20, each sterilised and packaged separately.

Different sizes are available.

Penetration Length: 75 mm - Diameter: 23G(0,60 mm)
Penetration Length: 100 mm - Diameter: 23G(0,60 mm)
Penetration Length: 150 mm - Diameter: 23G(0,60 mm)
Penetration Length: 100 mm - Diameter: 21G(0,80 mm)
Penetration Length: 120 mm - Diameter: 21G(0,80 mm)
Penetration Length: 150 mm - Diameter: 21G(0,80 mm)
Penetration Length: 200 mm - Diameter: 21G(0,80 mm)
Penetration Length: 150 mm - Diameter: 17G(1,40 mm)
Penetration Length: 200 mm - Diameter: 17G(1,40 mm)

Class IIa medical devices
