Wrap apron F111 Strata lead free Burlington

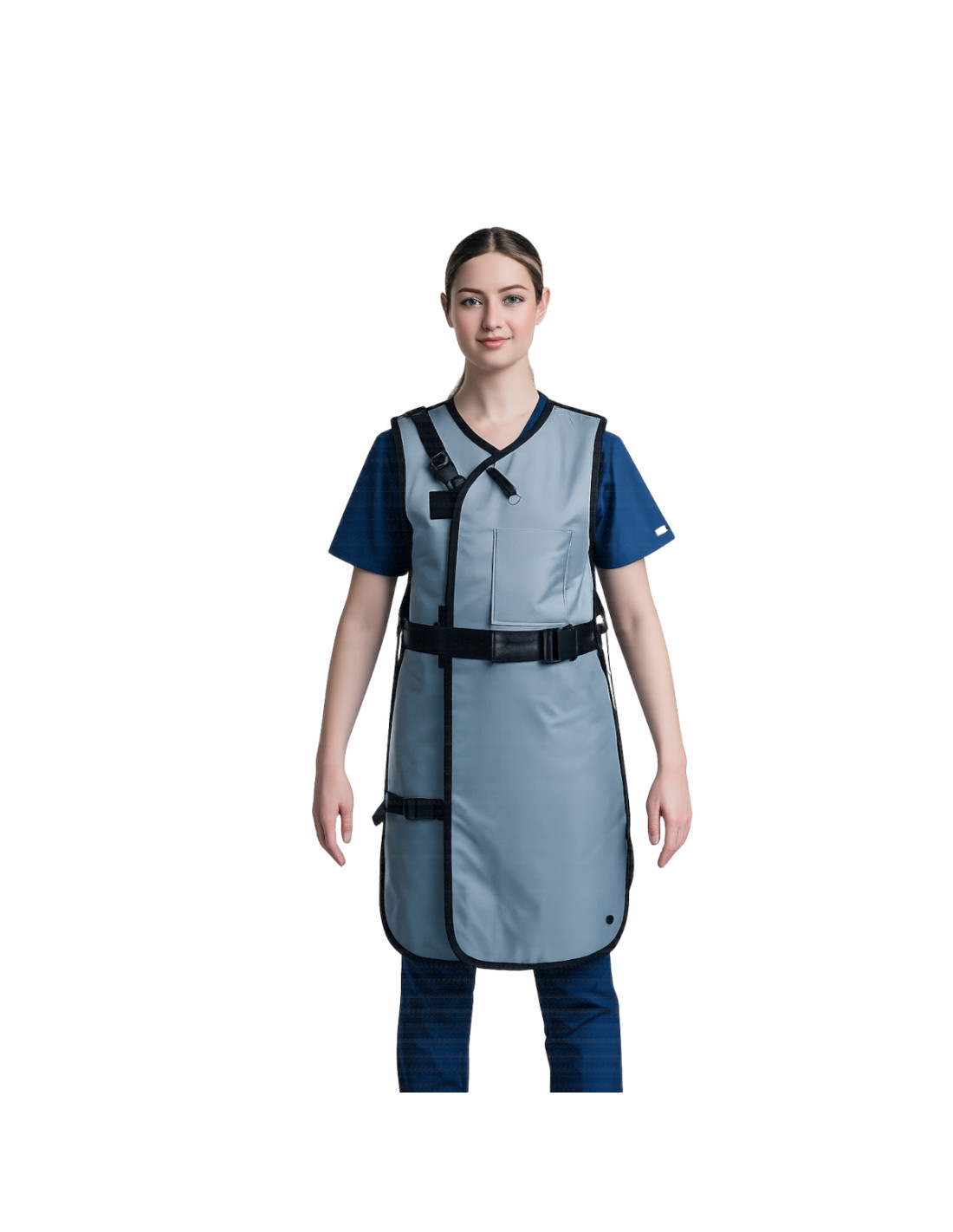

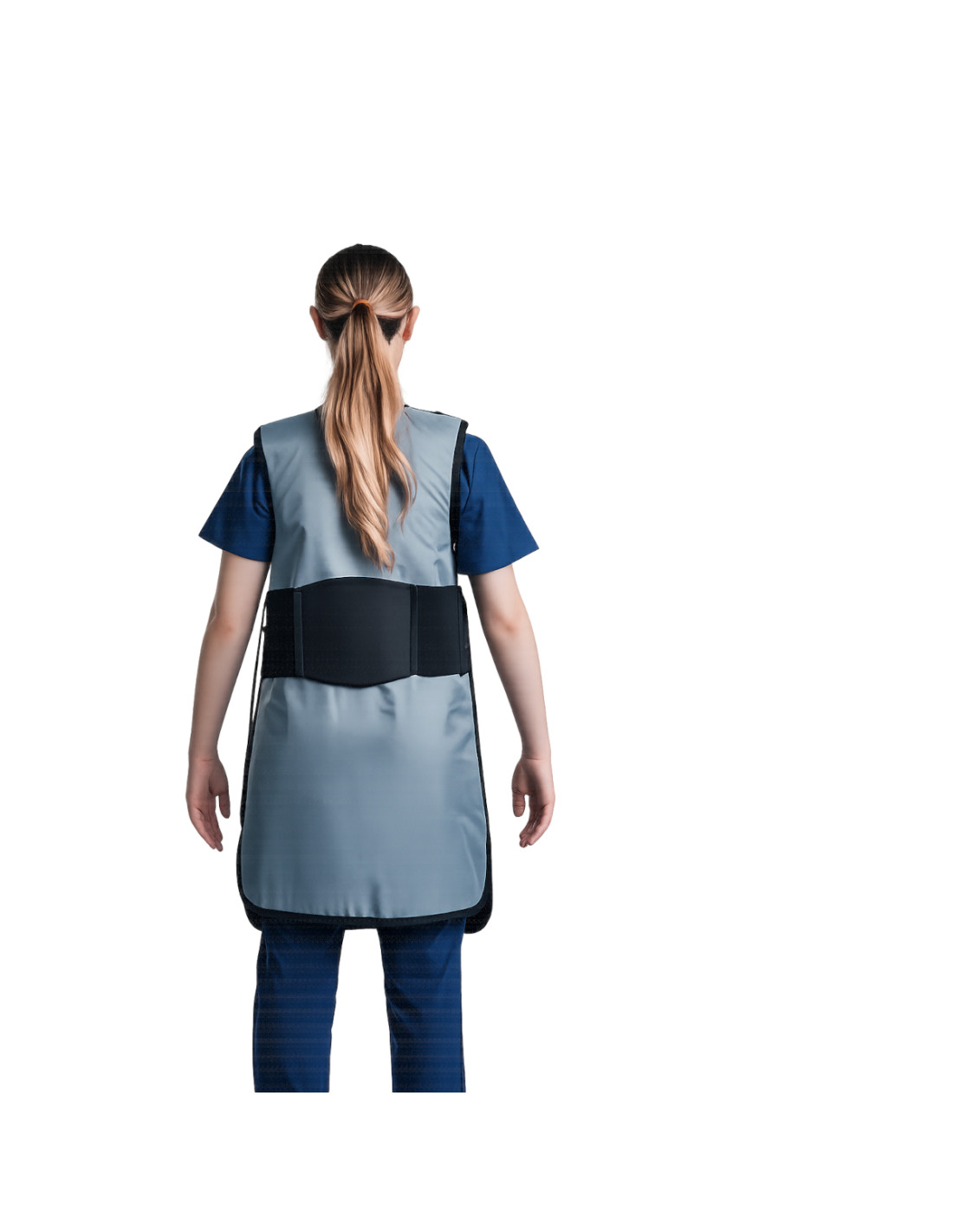

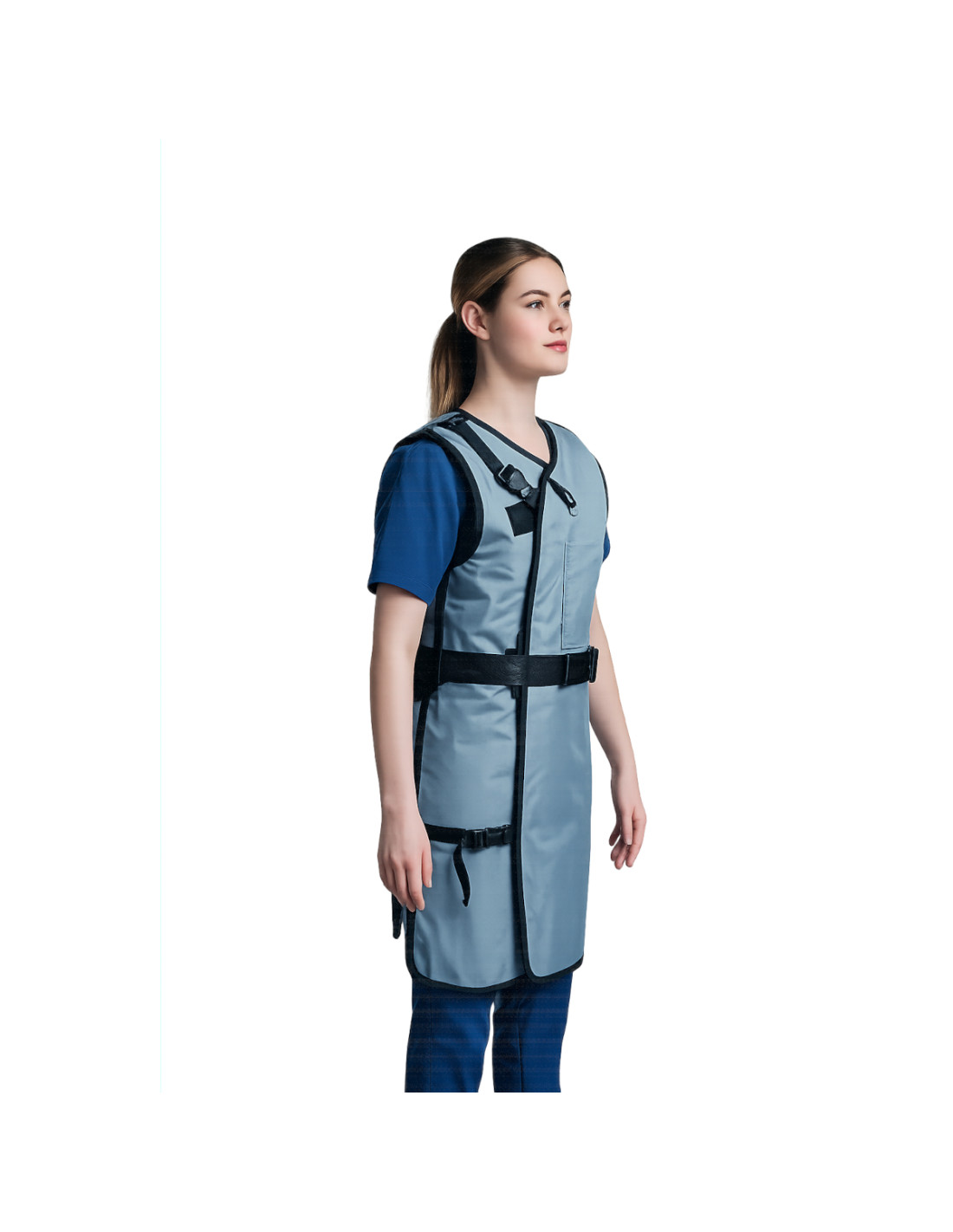

BURLINGTON F111 STRATA LEADFREE Radiation Protection Coat Apron

Lightweight Protection and Ergonomic Comfort for Medical Imaging Professionals

The BURLINGTON F111 STRATA LEADFREE radiation protection coat apron has been designed to provide effective protection against X-rays while significantly reducing the weight carried by the user. Thanks to its innovative lead-free multilayer technology and partial-overlap coat design, it is an ideal solution for healthcare professionals performing short to medium-duration procedures in interventional radiology, cardiology, and CT imaging.

Its one-piece wrap-around design provides effective protection from both frontal and lateral exposure while allowing quick and easy donning and removal. Equipped with a wide 15 cm adjustable elastic belt, adjustable lumbar support, and padded shoulders, the F111 STRATA LEADFREE ensures balanced weight distribution between the shoulders and hips for optimal comfort throughout the working day.

STRATA LEADFREE Technology: Lightweight Protection up to 120 kV

BURLINGTON STRATA LEADFREE material is based on an advanced layered protection technology that delivers excellent lead equivalency while significantly reducing the overall weight of the apron.

- Available lead equivalencies: 0.35/0.25 mm Pb or 0.50/0.25 mm Pb
- Tested at 50, 70, 90 and 110 kV in accordance with IEC 61331-1:2014
- Lead-free multilayer technology for significant weight reduction
- Lead equivalency determined using the inverse broad beam geometry method in accordance with IEC 61331-1:2014
- Suitable for applications using X-ray energies below 120 kV

Recommended Applications

The F111 STRATA LEADFREE coat apron is particularly suitable for professionals working in:

- Interventional Radiology
- Interventional Cardiology
- CT Imaging
- General Radiography
- Dental Imaging

It is recommended for procedures lasting less than 30 minutes that require effective radiation protection and excellent wearing comfort.

## Usage Limitations

Lead-free or lightweight protective garments should not be used in the following situations:

- When X-ray generator voltages are between 120 kV and 150 kV
- When using X-ray generators operating above 150 kV
- In Nuclear Medicine, regardless of the radionuclide used

Technical Features

- Partial-overlap coat design
- Full-height front closure with Velcro and buckles
- 15 cm adjustable elastic belt
- Optimised weight distribution between shoulders and hips
- Adjustable lumbar support
- Thick padded shoulders for enhanced comfort
- Standard chest pocket
- Quick and easy donning and removal

Compliance and Certification

- Compliant with IEC 61331-3:2014
- HC Category (Heavy Closed Use)
- CE Certified 89/686/EEC
- Personal Protective Equipment (PPE) Category III
- Tested and approved in accordance with NF EN 61331-3:2014

BURLINGTON STRATA LEADFREE Material

STRATA LEADFREE material combines lightweight construction, effective radiation protection, and environmental responsibility.

- 2.81 kg/m2 at 0.25 mm Pb equivalency
- 3.95 kg/m2 at 0.35 mm Pb equivalency
- 5.54 kg/m2 at 0.50 mm Pb equivalency
- 98% recyclable material
- Manufactured using a hot reformulation process

30 Colours Available

- Antibacterial outer coverings
- 4 patterned PVC colours
- 12 Polyurethane (PU) colours, plain or patterned
- 14 Nylon colours, plain or patterned
- Durable and easy-to-clean surfaces

Key Benefits of the BURLINGTON F111 STRATA LEADFREE Coat Apron

- Lightweight lead-free technology
- Excellent protection for applications up to 120 kV
- Coat-style design for quick and easy donning
- Weight distribution between shoulders and hips
- Adjustable lumbar support for enhanced comfort
- Compliant with IEC 61331-1 and IEC 61331-3 standards
- 98% recyclable material
- 5 year warranty
