Wrap apron W114 with buckle Strata lead free Burlington

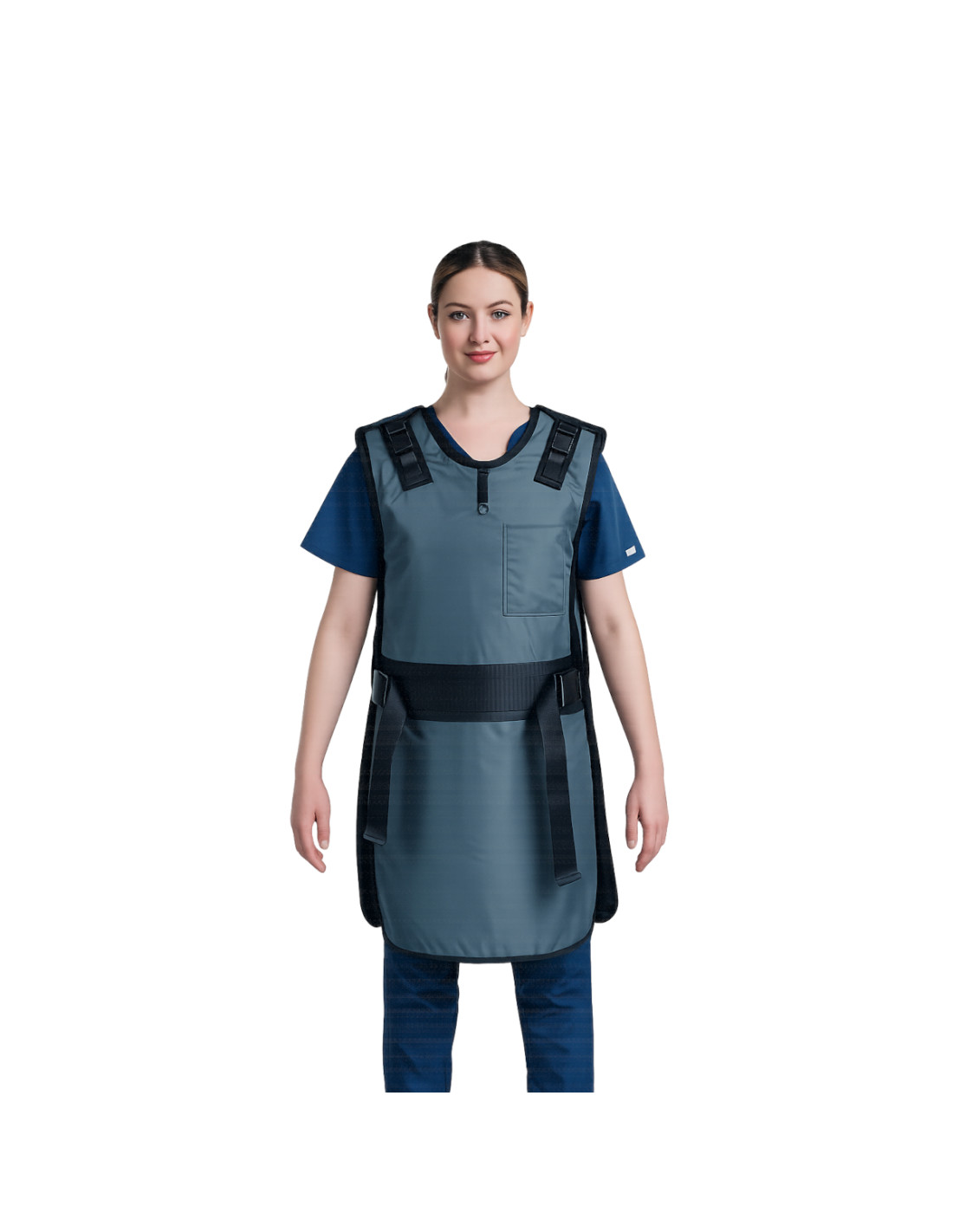

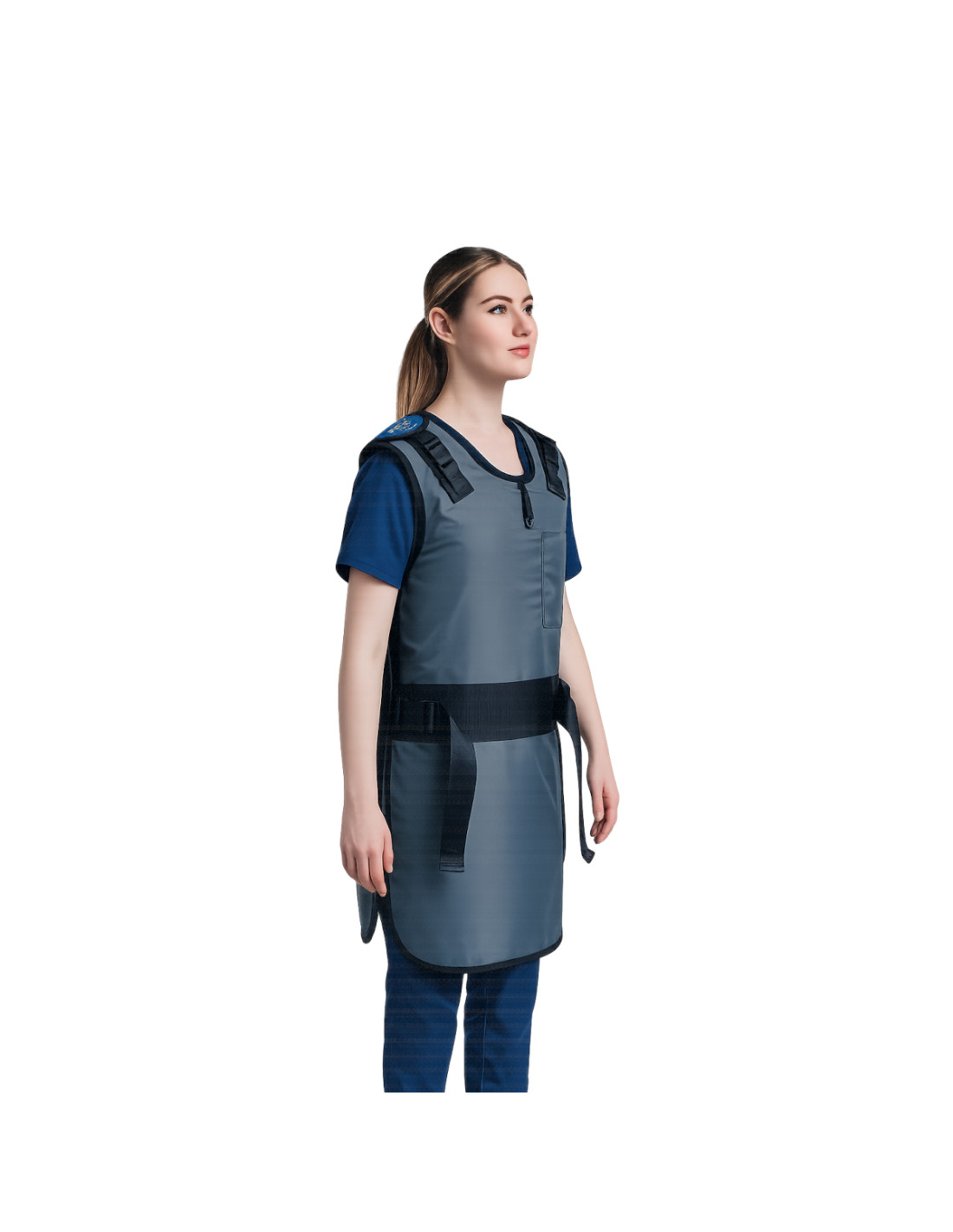

BURLINGTON W114 STRATA LEADFREE Radiation Protection Coat Apron

Lightweight Protection and Enhanced Hygiene for Operating Rooms

The BURLINGTON W114 STRATA LEADFREE radiation protection coat apron has been specifically designed for healthcare professionals exposed to X-rays in environments requiring the highest hygiene standards. Thanks to its innovative lead-free multilayer technology and ergonomic design, it delivers an excellent weight-to-protection ratio while ensuring optimal comfort during short to medium-duration procedures.

Unique on the market, the W114 STRATA LEADFREE has been developed to meet the specific requirements of operating rooms through its 100% buckle fastening system, with no Velcro components. This design facilitates cleaning and disinfection protocols while reducing contamination retention areas.

STRATA LEADFREE Technology: Lightweight Protection up to 120 kV

BURLINGTON STRATA LEADFREE material is based on an advanced layered protection technology that delivers excellent lead equivalency while significantly reducing the overall weight of the apron.

- Available lead equivalencies: 0.35/0.25 mm Pb or 0.50/0.25 mm Pb
- Tested at 50, 70, 90 and 110 kV in accordance with IEC 61331-1:2014
- Lead-free multilayer technology for significant weight reduction
- Lead equivalency determined using the inverse broad beam geometry method in accordance with IEC 61331-1:2014
- Suitable for applications using X-ray energies below 120 kV

Recommended Applications

The W114 STRATA LEADFREE coat apron is particularly suitable for professionals working in:

- Operating Rooms
- Interventional Radiology
- Interventional Cardiology
- CT Imaging
- General Radiography
- Dental Imaging

Usage Limitations

Lead-free or lightweight protective garments should not be used in the following situations:

- When X-ray generator voltages are between 120 kV and 150 kV
- When using X-ray generators operating above 150 kV
- In Nuclear Medicine, regardless of the radionuclide used

Technical Features

- Full-height side closure with buckles
- Velcro-free fastening system
- Shoulder buckles for precise adjustment
- 15 cm adjustable elastic belt
- Optimised weight distribution between shoulders and hips
- Thick padded shoulders for enhanced comfort
- Quick and secure fitting

Compliance and Certification

- Compliant with IEC 61331-3:2014
- HC Category (Heavy Closed Use)
- CE Certified 89/686/EEC
- Personal Protective Equipment (PPE) Category III
- Tested and approved in accordance with NF EN 61331-3:2014

BURLINGTON STRATA LEADFREE Material

STRATA LEADFREE material combines lightweight construction, effective radiation protection, and environmental responsibility.

- 3.2 kg/m2 at 0.25 mm Pb equivalency
- 4.3 kg/m2 at 0.35 mm Pb equivalency
- 6.2 kg/m2 at 0.50 mm Pb equivalency
- 98% recyclable material
- Manufactured using a hot reformulation process

30 Colours Available

- Antibacterial outer coverings
- 4 patterned PVC colours
- 12 Polyurethane (PU) colours, plain or patterned
- 14 Nylon colours, plain or patterned
- Durable and easy-to-clean surfaces

Key Benefits of the BURLINGTON W114 STRATA LEADFREE Coat Apron

- Specifically designed for operating room environments
- 100% buckle fastening system with no Velcro
- Lightweight lead-free technology
- Excellent protection for applications up to 120 kV
- Weight distribution between shoulders and hips
- Optimal comfort during interventional procedures
- Compliant with IEC 61331-1 and IEC 61331-3 standards
- 98% recyclable material
- 5 year warranty
