• New
Lead aluminum frame Pb 0.5mm by 10cm linear
Lead equivalency mm
Coating
Colors
Length mm
Width mm
Thickness mm
Télécharger le pdf

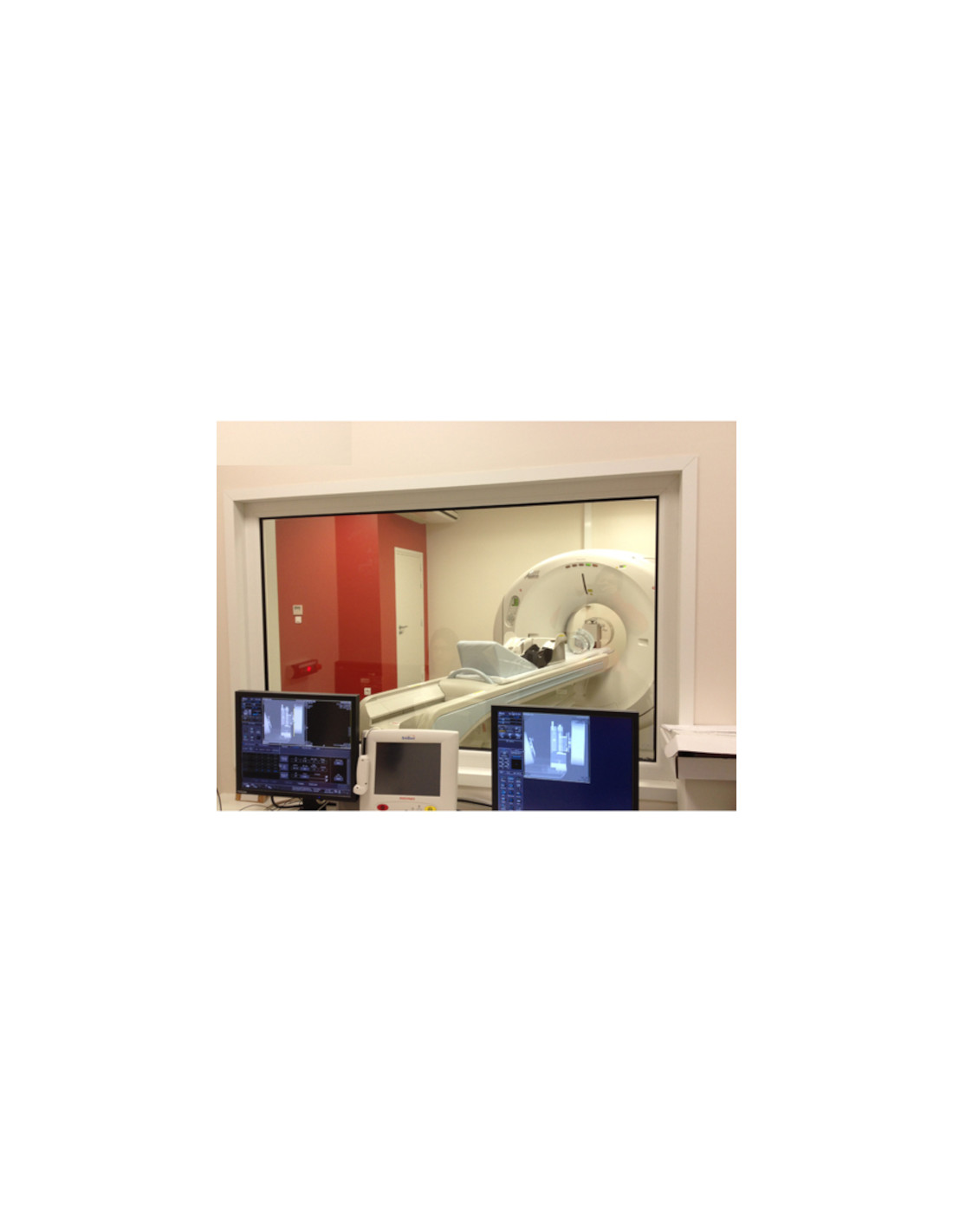

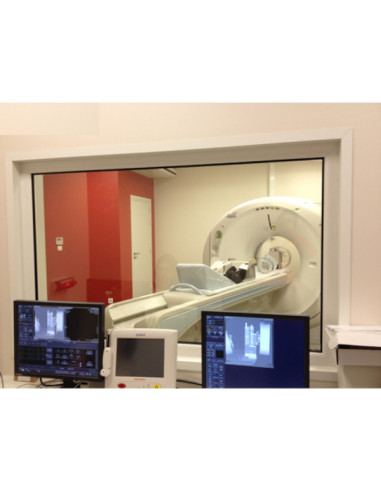

X-ray protective frame in aluminum for workers protection in the CT scanner control room.

? X-ray protective frame made according to your needs
? White painting aluminum frame
? Leaded cover gasket one side room included
? Alternative Pb 0.5 mm to 6.0 mm for the scanner
? Other lead equivalency on request up to 12 mm Pb max
? Lead glass Schott, eq. Pb 0.5 to 6.0 mm (extra)
? Delivered in kit
? Technical documentation and implementation are available on request
? All our chassis are compliant with the standard NFC15-160 and at any point radioprotected










Lead equivalence mm
0,5
Material
Aluminium
Coating
Laqué
Colors
Blanc
UGAP reference
3045935
Length mm
100
Width mm
42
Thickness mm
42
Net weight kg
0,43
Gross weight kg
0,93
CE
NFC15-160
104110
