Wrap apron F111 Eval lead Burlington

BURLINGTON F111 EVAL Radiation Protection Coat Apron

High-Performance Lead Protection and Ergonomic Comfort for Medical Imaging Professionals

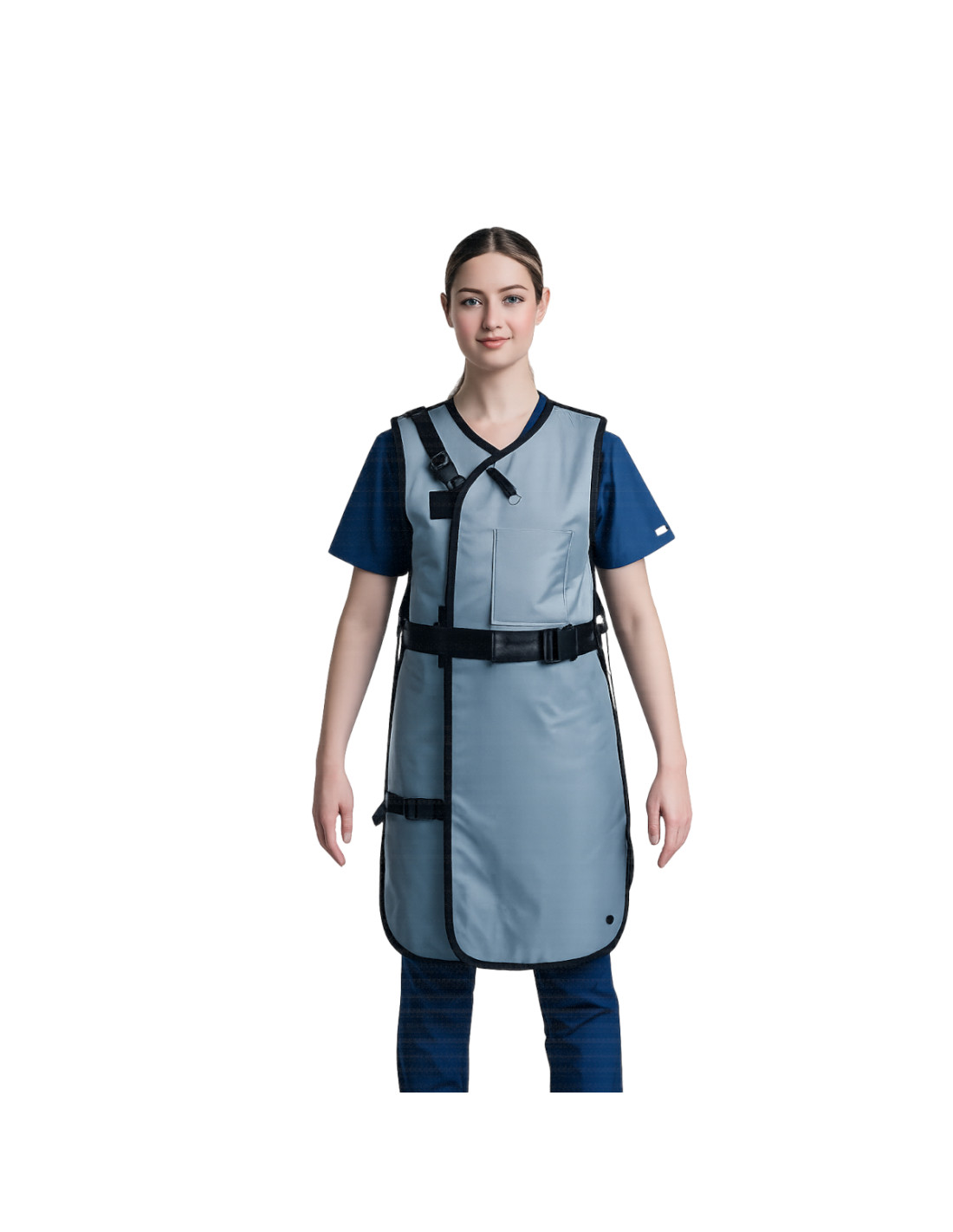

The BURLINGTON F111 EVAL radiation protection coat apron has been designed to provide optimal protection against ionizing radiation while ensuring excellent wearing comfort. Thanks to its partial-overlap coat design and 100% lead-based protective material, it is an ideal solution for healthcare professionals performing short to medium-duration procedures in radiology, interventional cardiology, and CT imaging.

Its one-piece wrap-around design allows for quick donning and a precise fit. Equipped with a wide 15 cm adjustable elastic belt, integrated lumbar support, and padded shoulders, the F111 EVAL provides balanced weight distribution between the shoulders and hips, helping to reduce fatigue during procedures.

EVAL Material: Certified Protection up to 150 kV

Manufactured from BURLINGTON EVAL lead-based protective material, the F111 provides consistent lead equivalency across all imaging energies, including high-energy applications.

- Available lead equivalencies: 0.35/0.25 mm Pb or 0.50/0.25 mm Pb
- Tested and approved from 50 kV to 150 kV in accordance with IEC 61331-1:2014
- Suitable for procedures using X-ray energies above 125 kV
- Lead equivalency determined using the inverse broad beam geometry method in accordance with IEC 61331-1:2014
- 100% lead-based protective material for consistent radiation attenuation

Recommended Applications

The F111 EVAL coat apron is particularly suitable for professionals working in:

- Interventional Radiology
- Interventional Cardiology
- CT Imaging
- General Radiography
- Mammography
- Dental Imaging
- Computed Tomography
- Nuclear Medicine

It is recommended for procedures lasting less than 30 minutes that require enhanced radiation protection and superior comfort.

Technical Features

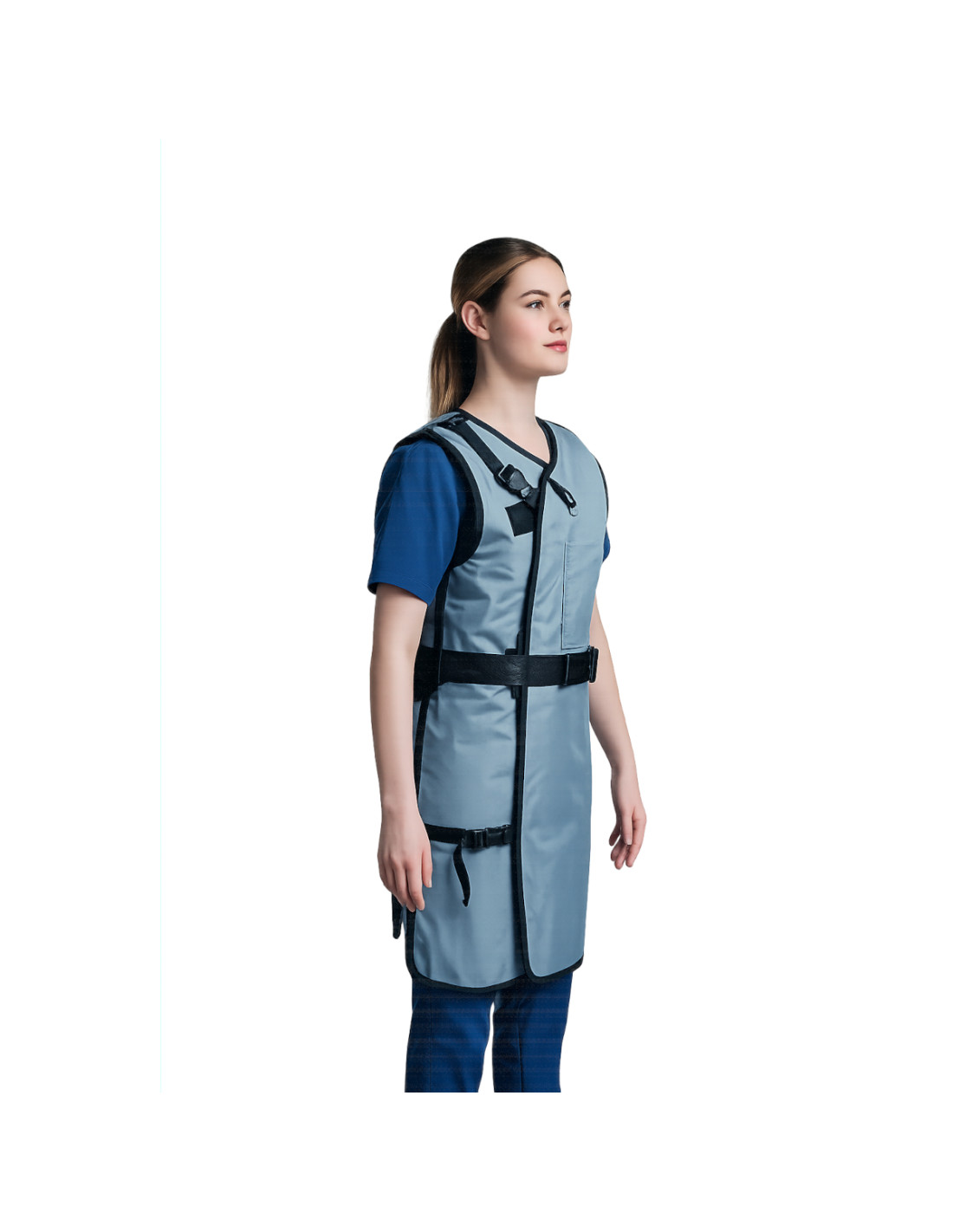

- Partial-overlap coat design
- Full-height front closure with Velcro and buckles
- 15 cm adjustable elastic belt
- Optimised weight distribution between shoulders and hips

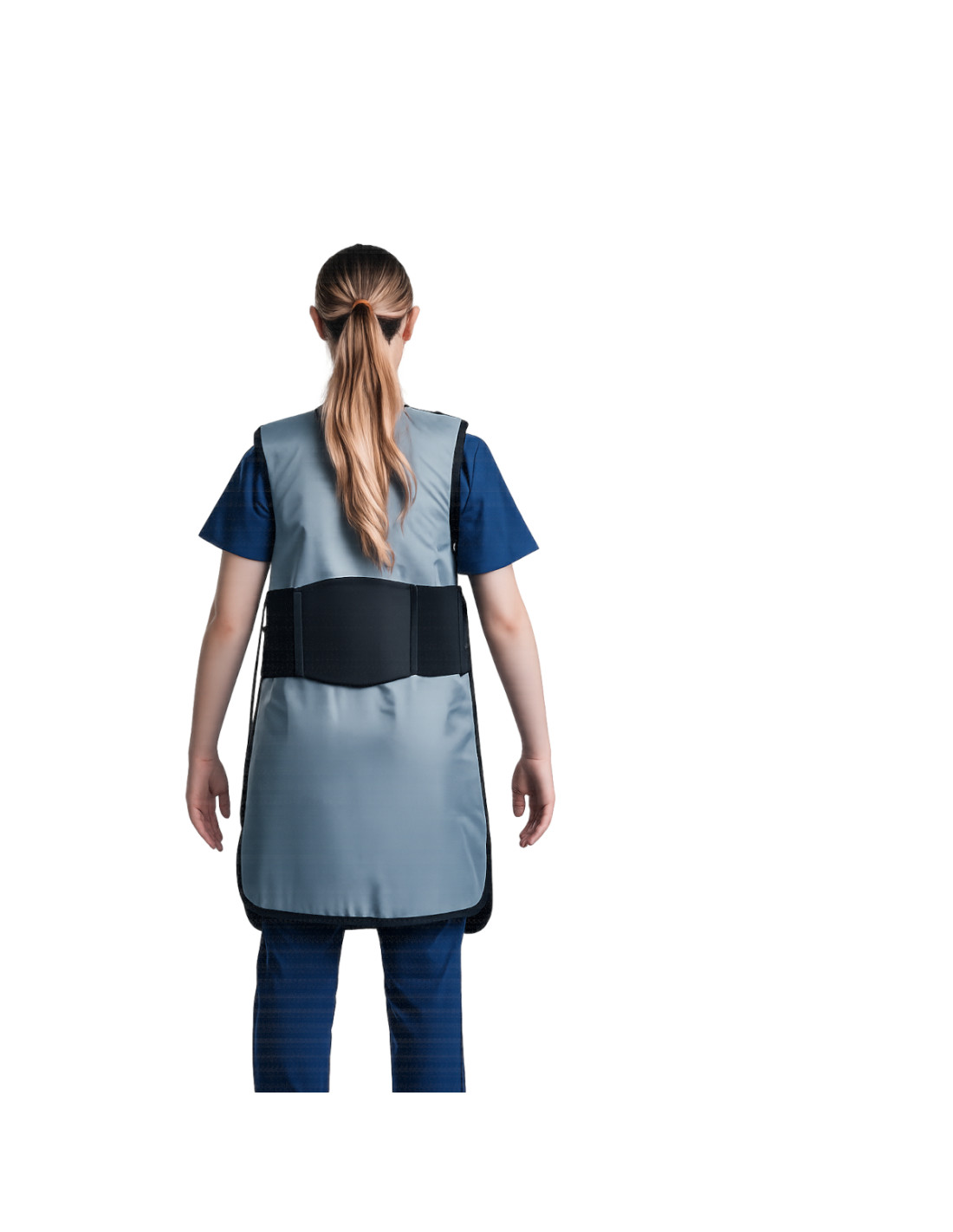

- Integrated lumbar support
- Thick padded shoulders for enhanced comfort
- Quick and easy donning and removal

Compliance and Certification

- Compliant with IEC 61331-3:2014
- HC Category (Heavy Closed Use)
- CE Certified 89/686/EEC
- Personal Protective Equipment (PPE) Category III
- Tested and approved in accordance with NF EN 61331-3:2014

BURLINGTON EVAL Material

EVAL material provides a high level of radiation protection while ensuring excellent durability.

- 3.62 kg/m2 at 0.25 mm Pb equivalency
- 4.9 kg/m2 at 0.35 mm Pb equivalency
- 7.11 kg/m2 at 0.50 mm Pb equivalency
- 98% recyclable material
- Manufactured using a hot reformulation process

30 Colours Available

- Antibacterial outer coverings
- 4 patterned PVC colours
- 12 Polyurethane (PU) colours, plain or patterned
- 14 Nylon colours, plain or patterned
- Durable and easy-to-clean surfaces

Key Benefits of the BURLINGTON F111 EVAL Coat Apron

- Certified lead protection up to 150 kV
- 100% lead-based material for consistent protection
- Coat-style design for quick and easy donning
- Weight distribution between shoulders and hips
- Integrated lumbar support for enhanced comfort
- Compliant with IEC 61331-1 and IEC 61331-3 standards
- 98% recyclable material
- 5 year warranty
